Import HDL Files or IP Cores

Video Guides​

VHDL with the VHDPlus IDE​


Verilog with the VHDPlus IDE​

Import a HDL file (VHDL, Verilog)​

Import

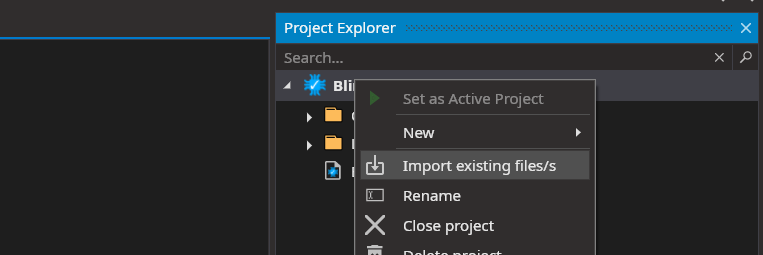

  1. Right-click the project or a folder in the project explorer
  2. Click on "Import existing file/s"
  3. Set HDL Files as filter and select the HDL file to import
  4. Now when you write NewComponent in your VHDP code, the VHDL component should show up

Import other HDL files​

  1. Right-click the project or a folder in the project explorer
  2. Click on "Import existing file/s"
  3. Set All Files as filter and select the HDL file to import
  4. To add the file like a VHDP Component, you have to write a VHDP interface:
    1. Create a new VHDP file
    2. Rename it so the file extension is .qsys.vhdp
    3. Add a Component in the file with the name of the component in the HDL file and add the signals and generic parameters from the HDL file
  5. Now when you write NewComponent in your VHDP code, the new component should show up

Example for DVI_OUT.v:

Component DVI_OUT
(
    iPCLK  : IN STD_LOGIC;
    iSCLK  : IN STD_LOGIC;

    iRED   : IN STD_LOGIC_VECTOR(7 downto 0);
    iGRN   : IN STD_LOGIC_VECTOR(7 downto 0);
    iBLU   : IN STD_LOGIC_VECTOR(7 downto 0);
    iHS    : IN STD_LOGIC;
    iVS    : IN STD_LOGIC;
    iDE    : IN STD_LOGIC;

    oDVI_DATA : OUT STD_LOGIC_VECTOR(2 downto 0);
    oDVI_CLK  : OUT STD_LOGIC;
    iDVI_HPD  : IN  STD_LOGIC;
)
{

}

Import

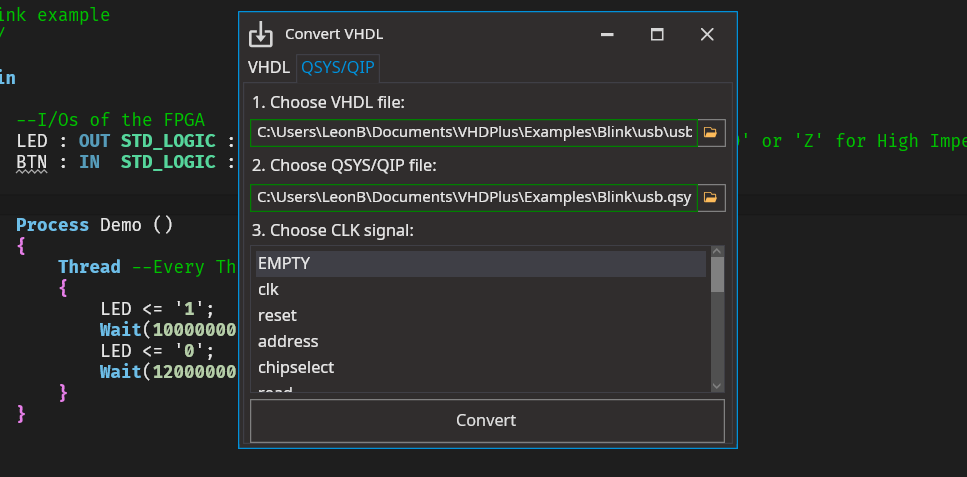

You can use this tool to import existing VHDL files or Intel FPGA IP Cores and convert them to be used in your project.

Convert a VHDL file to use it like a VHDP file​

  1. Select the VHDL file
  2. Choose a signal that should be connected with the CLK signal (or EMPTY to keep all inputs)
  3. Press Convert. The converted file will be added to the active project.

Import an Intel FPGA IP Cores​

  1. Open Quartus with the current project (Tools/Open in Quartus)
  2. Select an IP Core from the IP Catalog (Tools/IP Catalog)
  3. Generate the QSYS/QIP file and the VHDL file by following the assistant
  4. Go to the import tool and select the generated VHDL file and the QSYS/QIP file
  5. Choose a signal that should be connected with the CLK signal (or EMPTY to keep all inputs)
  6. Press Convert. The QSYS/QIP file will be added to the project as link to the IP Core and a VHDP file will be generated as interface so you can use the IP Core in the VHDP files. If you want to change the parameters you can open the QSYS/QIP file from the project explorer. Make sure that the I/Os of the VHDP file are still correct.
