VHDPlus Audio Extension

⚠️ Coming Soon

Audio Extension

The Audio extension features an Audio Codec IC that allows to receive and output analog audio data. This allows you to e.g. make your own audio mixer, synthesizer or program a voice recognition. Like for image processing, you also profit from FPGAs with audio processing.

Audio Overview

Audio Overview

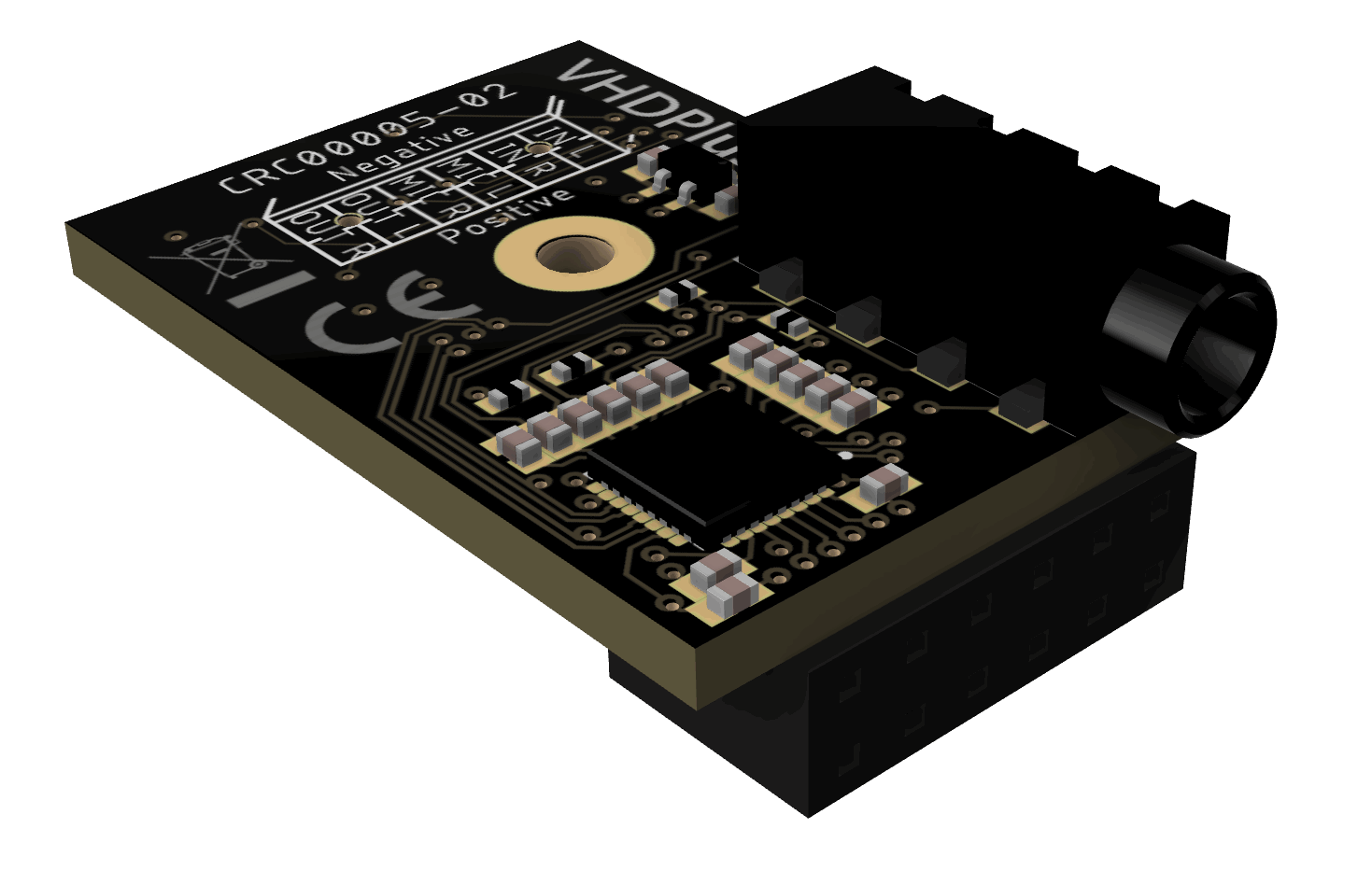

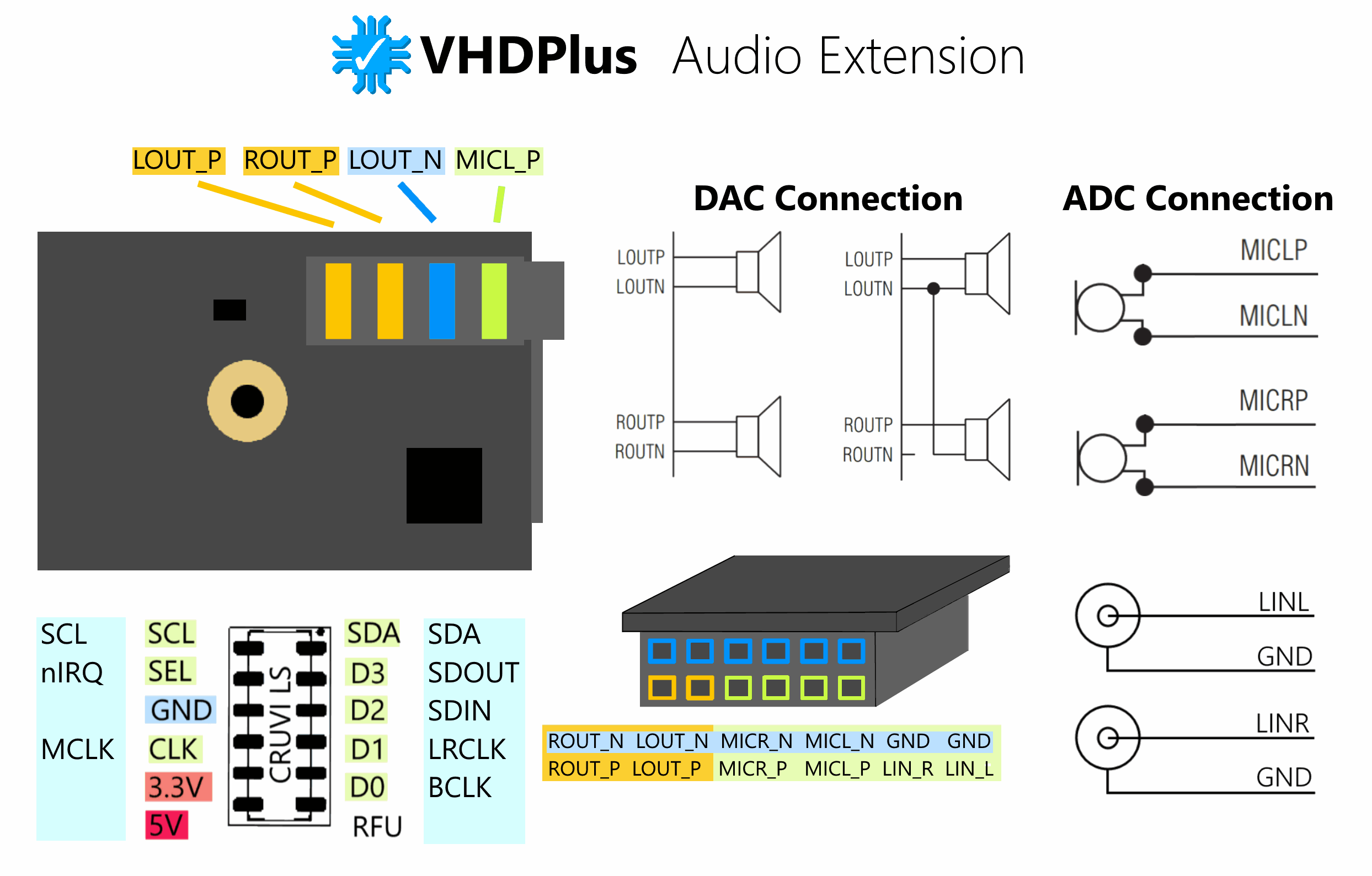

The VHDPlus Audio Extension features a MAX9867 Audio Codec with 2 18bit, 48kHz ADCs and DACs. On the top you can connect a headset with stereo audio and a microphone. The connector on the bottom has stereo audio inputs and outputs. As audio input there is the choice between standard audio inputs and microphone inputs.
